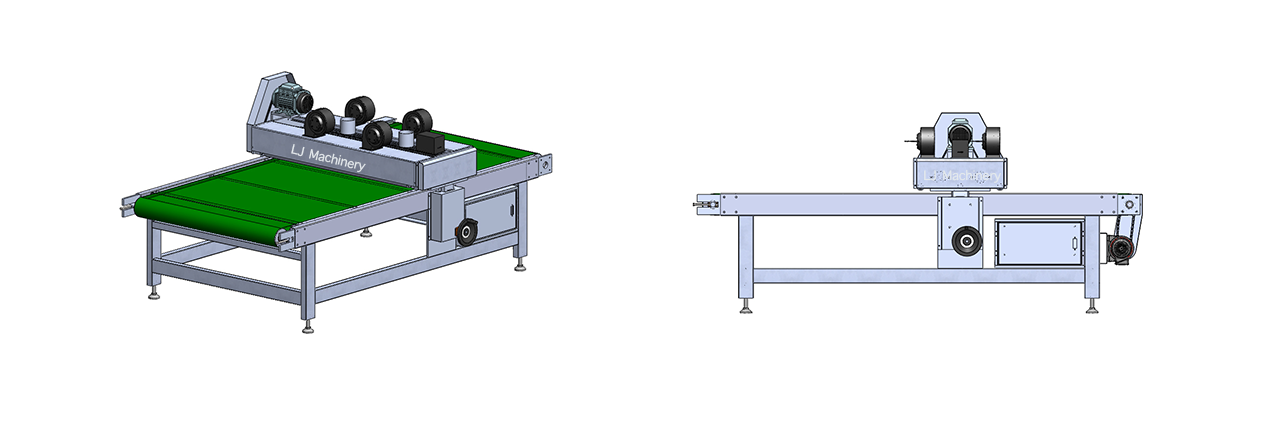

This cleaning machine is designed to remove all surface contaminants on panels. It is usually positioned before the first roll coater or after a sander in a panel finishing line.
General
This cleaning machine is used to prepare any panel product that requires a coated finish.
Capacity
Up to 500M/hour with working speed 12M/min
Applications
Suitable for textured wood flooring, table tops, cabinet door panels, wall panels, interior wooden doors, ceiling panels, and other decorative elements.
- Eliminates Finish Defects: It is the primary defense against finish imperfections like ‘nibs’, ‘pitting’, ‘fish eyes’, and ‘inclusions’, where dust particles are trapped under or in the coating.
- Ensures Perfect Coating Adhesion: A perfectly clean surface allows coatings to wet-out and adhere uniformly, resulting in a stronger, more durable finish.
- High Production Speed & Efficiency: It processes panels at 5-20 meters per minute, dramatically increasing output and reducing labor costs compared to hand-scraping.
- Structure
- Conveyor System
- Brush Unit
- Electrical Parts
The structure is built with 50*150mm high-strength square HSS & 3mm thick cold plate. It’s designed for reliability and minimal maintenance, ensuring consistent and uninterrupted operation.. It’s designed for reliability and minimal maintenance, ensuring consistent and uninterrupted operation.
Panels are fed through the machine automatically via a conveyor belt system. This ensures a consistent feed rate, which is critical for achieving a uniform texture across all panels. Working speed: 5-20M/min.
The brush machine contains two brush rolls, they are nylon brushes.
- Electrical cabinet, contains terminal blocks, circuit breakers, and fuses that distribute incoming power to the various components while providing overload and short-circuit protection.
- Emergency stop button, the large red button located at the conspicuous place, when pressed, it immediately cut power to all motors.
- All motors are sourced from local leading suppliers or equivalent international brands. The inverters are from Schneider.
Technical Data
| Working width, mm | 600 | 1300 |
| Working speed, M/min | 5-20 | 5-20 |
| Dimensions of conveyor belt, mm | 5115*620 | 5115*1320 |
| Dimensions of brush rolls, mm | 140*660 | 140*1360 |
| Numbers of motor. pcs | 2 | 2 |
| Brand of motor | Liongoal | Liongoal |
| Power, kW | 1.96 | 2.42 |
| Overall dimensions | ||
| length, mm | 2500 | 2500 |
| width, mm | 1200 | 1200 |
| height, mm | 1300 | 1300 |
For other working width, we also support customization. If you are interested, please contact us.
