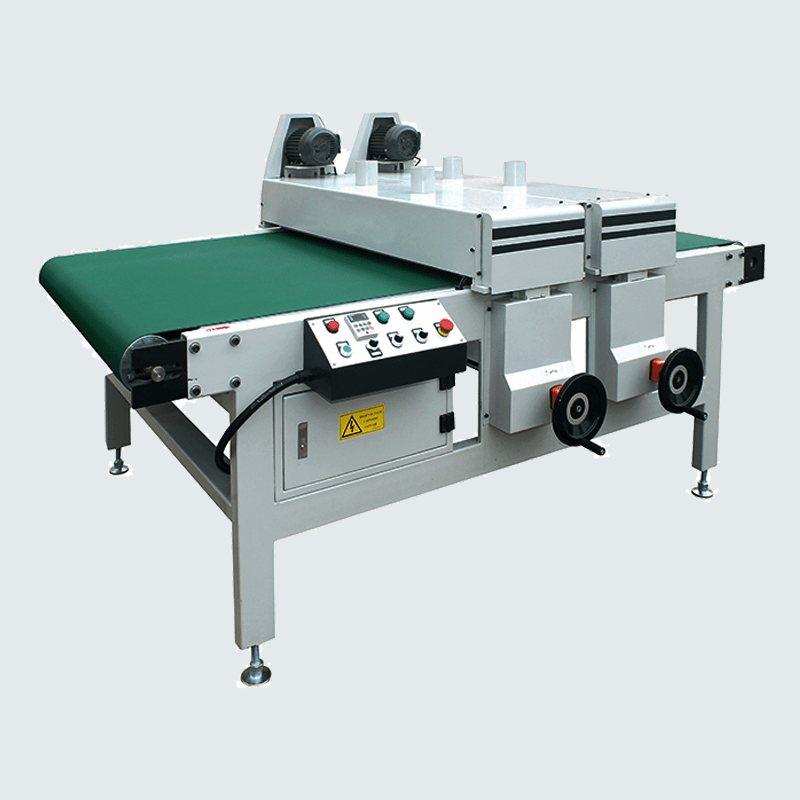

This denibbing machine is a specialized piece of equipment used in automated wood finishing lines. It is used to remove the raised wood fibers that have become embedded in a layer of coating after it has been cured (dried).
General
The key function of this denibbing machine is not to shape the wood but to create an impeccably smooth surface on a cured coating so the next layer can be applied perfectly.
Capacity
Up to 500M/hour with working speed 12M/min
Applications
Suitable for textured wood flooring, table tops, cabinet door panels, wall panels, interior wooden doors, ceiling panels, and other decorative elements.
- Eliminates Finish Defects: Lightly abrade a cured sealer or base coat layer to remove minor imperfections and create a perfectly smooth and uniform surface for the subsequent coat.
- Ensures Perfect Coating Adhesion: A perfectly clean surface allows coatings to wet-out and adhere uniformly, resulting in a stronger, more durable finish.
- High Production Speed & Efficiency: It processes panels at 5-20 meters per minute, dramatically increasing output and reducing labor costs compared to hand-scraping.

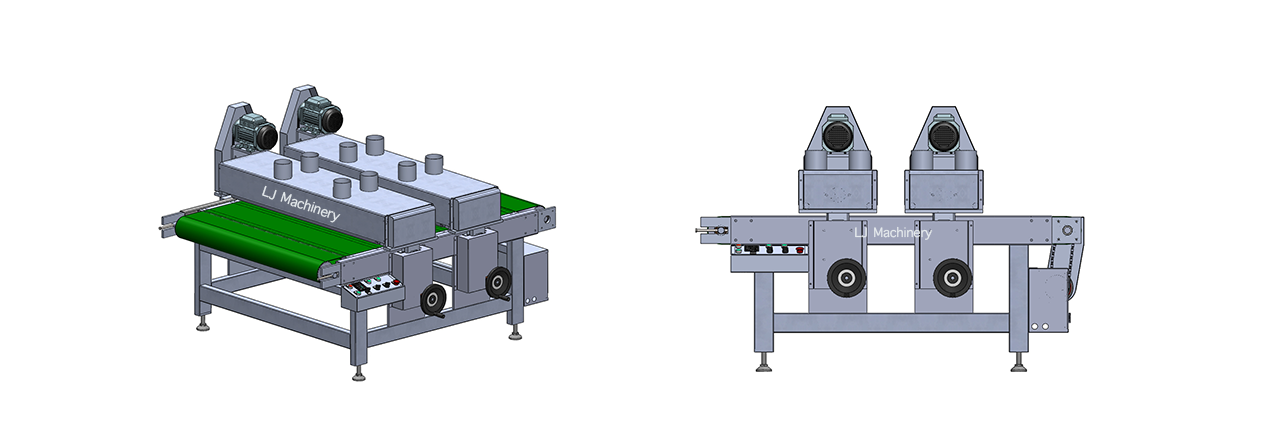

- Structure
- Conveyor System
- Brush Unit
- Electrical Parts
The structure is built with 50*150mm high-strength square HSS & 3mm thick cold plate. It’s designed for reliability and minimal maintenance, ensuring consistent and uninterrupted operation.. It’s designed for reliability and minimal maintenance, ensuring consistent and uninterrupted operation.
Panels are fed through the machine automatically via a conveyor belt system. This ensures a consistent feed rate, which is critical for achieving a uniform texture across all panels. Working speed: 5-20M/min.
The brush machine contains two brush rolls, they are nylon wire brushes.
- Electrical cabinet, contains terminal blocks, circuit breakers, and fuses that distribute incoming power to the various components while providing overload and short-circuit protection.
- Emergency stop button, the large red button located at the conspicuous place, when pressed, it immediately cut power to all motors.
- All motors are sourced from local leading suppliers or equivalent international brands. The inverters are from Schneider.
Technical Data
| Working width, mm | 600 | 1300 |
| Working speed, M/min | 5-20 | 5-20 |
| Dimensions of conveyor belt, mm | 5115*620 | 5115*1320 |
| Dimensions of brush rolls, mm | 140*660 | 140*1360 |
| Numbers of motor. pcs | 2 | 2 |
| Brand of motor | Liongoal | Liongoal |
| Power, kW | 1.96 | 2.42 |
| Overall dimensions | ||
| length, mm | 2500 | 2500 |
| width, mm | 1200 | 1200 |
| height, mm | 1300 | 1300 |
For other working width, we also support customization. If you are interested, please contact us.
