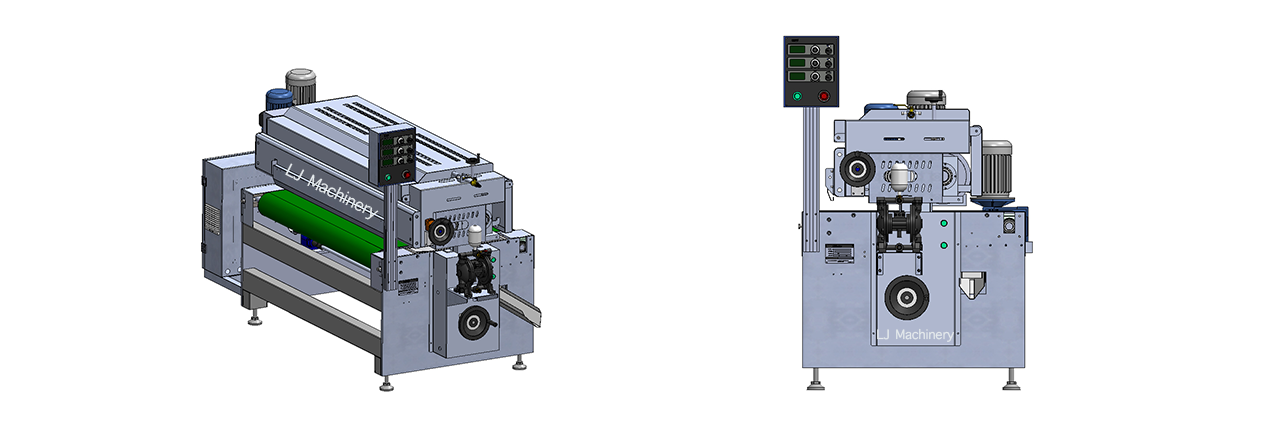

This roll coater can be used to apply a thin, uniform layer of coating to a flat substrate, coating material including wood stain, waterborne coating, UV curable coating/lacquer, and color paints, to achieve a specific finish or function.
General
Single-sided coating for substrates with flat surfaces
Capacity
Up to 1,200m2/hour (depending on substrate type and dimension)
Applications
Wood and wood-composite products: solid wood, plywood, hardboard, MDF, particle board, etc.
Rubber and plastic: acrylic, PVC sheets, SPC sheets, rubber mats.
Other: glass panels, fibre cement panels, and any flat substrate that is suitable to be coated.
- Drive factory progress through mechanized production.
- Reduce paint waste and extract greater value from finished products.
- Enhance production efficiency and achieve long-term cost savings with coating line and intelligent automation.
- Components that have been reliably used in mass production for years guarantee you robust processes.
- Structure
- Conveyor System
- Application Unit
- Electrical Parts
The structure is built with 16mm steel plate and durable components that can withstand heavy-duty use in industrial environments. It’s designed for reliability and minimal maintenance, ensuring consistent and uninterrupted operation.
Belt: 2mm thick, solvent-resistant
Drive: Aluminum geared motor
Speed Control: Optional variable frequency drive
The application unit consists of a cover, 2 rubber rolls, and 2 doctor rolls.
Its vertical movement (rise and fall) is powered by a 0.37 kW motor with a geared reducer, guided by dovetail rails for stability, and is equipped with a height counter for precise positioning.
- The control cabinet is separated from the machine to facilitate easier maintenance.
- All motors and reducers are sourced from local leading suppliers or equivalent international brands.
- The inverters are from Schneider.
Technical Data
| Working width, mm | 600 | 1300 |
| Thickness of steel structure, mm | 16 | 16 |
| Dimensions of conveyor belt, mm | 2115*620 | 2115*1320 |
| Roll dimensions and numbers, mm/pcs | ||
| rubber roll | 250*750/1 | 250*1450/1 |
| laser roll (optional) | 250*750/1 | 250*1450/1 |
| doctor roll | 164*750/1 | 164*1450/1 |
| bottom roll | 200*620/1 | 200*1320/1 |
| Numbers of motor. pcs | 5 | 5 |
| Brand of motor/convertor | Takaoki/Schneider | Takaoki/Schneider |
| Frequency converter controlled | standard | standard |
| Power, kW | 5.62 | 7.18 |
| Whole set dimensions | ||
| length, mm | 1000 | 1000 |
| width, mm | 2050 | 2750 |
| height, mm | 1640 | 1640 |
For other working width, we also support customization, if you are interested, please contact us.
