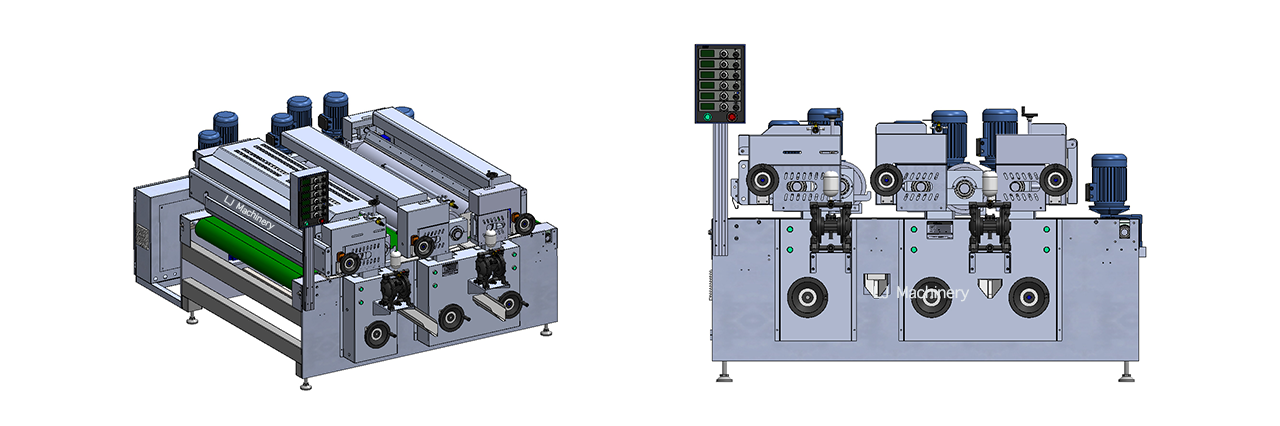

This putty machine is designed to be used for filling the wood substrate with thick coating, like UV curable or waterborne putty to get a sealed flat surface. Its key function is in achieving smooth, lump-free surface to prepare for the next step coating. It has an extra pair of rolls compared to the other putty machine, to achieve better filling effect.
General
Single-sided putty coating for substrates with flat surfaces
Capacity
Up to 1,200m2/hour (depending on substrate type and dimension)
Applications
Wood and wood-composite products: solid wood, plywood, hardboard, MDF, particle board, etc.
Other: fibre cement panels, and any substrate with uneven surface that is suitable to be filled.
- Drive factory progress through mechanized production.
- Reduce paint waste and extract greater value from finished products.
- Enhance production efficiency and achieve long-term cost savings with coating line and intelligent automation.
- Components that have been reliably used in mass production for years guarantee you robust processes.
- Structure
- Conveyor System
- Application Unit
- Electrical Parts
The structure is built with 16mm steel plate and durable components that can withstand heavy-duty use in industrial environments. It’s designed for reliability and minimal maintenance, ensuring consistent and uninterrupted operation.
Belt: 2mm thick, solvent-resistant
Drive: Aluminum geared motor
Speed Control: Optional variable frequency drive
The application unit consists of covers, 2 rubber rolls, 1 pressure roll and 2 doctor rolls.
Its vertical movement (rise and fall) is powered by a 0.37 kW motor with a geared reducer, guided by dovetail rails for stability, and is equipped with a height counter for precise positioning.
- The control cabinet is separated from the machine to facilitate easier maintenance.
- All motors and reducers are sourced from local leading suppliers or equivalent international brands.
- The inverters are from Schneider.
Technical Data
| Working width, mm | 600 | 1300 |
| Thickness of steel structure, mm | 16 | 16 |
| Dimensions of conveyor belt, mm | 3315*620 | 3315*1320 |
| Roll dimensions and numbers, mm/pcs | ||
| rubber roll | 250*750/2 | 250*1450/2 |
| pressure roll | 241*750/1 | 241*1450/1 |
| doctor roll | 164*750/2 | 164*1450/2 |
| bottom roll | 200*620/2 | 200*1320/2 |
| Numbers of motor. pcs | 8 | 8 |
| Brand of motor/convertor | Takaoki/Schneider | Takaoki/Schneider |
| Frequency converter controlled | standard | standard |
| Power, kW | 11 | 12.6 |
| Whole set dimensions | ||
| length, mm | 1600 | 1600 |
| width, mm | 2750 | 2750 |
| height, mm | 1640 | 1640 |
For other working width, we also support customization, if you are interested, please contact us.
