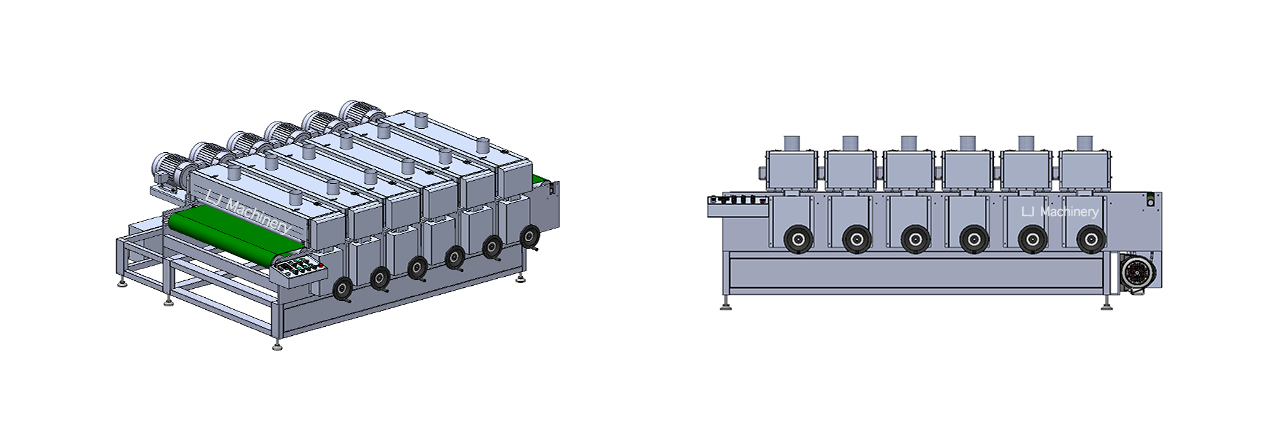

This wire brush machine is designed for texturing wood and graining wood surfaces by using wire brushes.
The rapidly rotating steel wire brushes aggressively scrape and wear any the softer parts of the wood grain.
It helps wood manufacturers to save time & labor costs, produce high-quality results by offering a fast, efficient and cost-effective way to prepare and finish wood panels.
General
The core function of the wire brush machine is to selectively remove material to enhance the wood’s natural texture.
As wood is composed of alternating hard and soft growth rings, the wire brushes can effectively scrape away the softer wood fibers while leaving the harder wood grain intact. This results in a deeply textured, tactile surface that highlights the wood’s natural grain pattern, giving it a rustic, weathered look.
This deep, 3D textured surface is highly sought after because it allows stains and oils to penetrate differently into the wood ridges and valleys, creating a much more dynamic and visually interesting finish than smooth wood.
Capacity
Up to 500M/hour with working speed 12M/min
Applications
Hardwoods like oak, chestnut, and walnut
- Operation Consistency: The automated process ensures every single wood panel has an identical texture, which is impossible to achieve manually. This is crucial for large projects where panels must match perfectly.
- High Production Speed & Efficiency: It processes panels at 5-20 meters per minute, dramatically increasing output and reducing labor costs compared to hand-scraping.
- Improved Worker Safety: Automating the process removes the need for workers to handle powerful angle grinders or handheld wire brushes, significantly reducing the risk of repetitive strain injuries and accidents. Also the integrated dust extraction system captures the vast majority of harmful wood dust at the source, creating a much healthier workshop environment and ensuring compliance with safety regulations.
- Deeper and More Defined Texture: The power and consistency of the machine often allow for a more pronounced and uniform 3D effect than what can be feasibly achieved by hand on a large scale.
- Cost-Effectiveness for Large Volumes: While the initial investment is high, the per-panel cost of brushing plummets with volume, making it the only economically viable option for mass production.
- Structure
- Conveyor System
- Brush Unit
- Electrical Parts
The structure is built with 16mm steel plate that can withstand heavy-duty use in industrial environments. It’s designed for reliability and minimal maintenance, ensuring consistent and uninterrupted operation.
Panels are fed through the machine automatically via a conveyor belt system. This ensures a consistent feed rate, which is critical for achieving a uniform texture across all panels.
The wire brush machine contains one or more rotating brush heads, they can be configured with nylon wire brushes and steel wire brushes. The nylon brushes are used for lighter texture or on softer woods like pine to prevent over-brushing and tearing. The steel wire brushes are most common used for aggressive brushing on hardwoods like oak, chestnuts and walnut. The more brush heads equipped, the better 3D effect will be.
- Electrical cabinet, contains terminal blocks, circuit breakers, and fuses that distribute incoming power to the various components while providing overload and short-circuit protection.
- Emergency stop button, the large red button located at the conspicuous place, when pressed, it immediately cut power to all motors.
- All motors are sourced from local leading suppliers or equivalent international brands. The inverters are from Schneider.
Technical Data
| Working width, mm | 600 | 1300 |
| Thickness of steel structure, mm | 16 | 16 |
| Dimensions of conveyor belt, mm | 6115*620 | 6115*1320 |
| Numbers of motor. pcs | 7 | 7 |
| Brand of motor/convertor | Liongoal/Schneider | Liongoal/Schneider |
| Frequency converter controlled | standard | standard |
| Power, kW | 21.4 | 47.2 |
| Overall dimensions | ||
| length, mm | 3000 | 3000 |
| width, mm | 950 | 1650 |
| height, mm | 1100 | 1100 |
These datas are for a Six-Head Wire Brush Machine, for other quantity or working width, we also support customization.
If you are interested, please contact us.
